Brand
Weber Rescue Systems
Feature
- Advanced Mobility and Flexibility: Thanks to its compact body and wireless operation, it adapts to all field conditions.
- Continuous Extension: The maximum extension length of 1360 mm is achieved without any intermediate stops. This feature enables continuous and effective intervention in operations where time is critical.
- DISTANCE Technology: The integrated length indicator on the piston rod allows the operator to easily monitor the remaining extension distance at all times.
- Rotation Under Load: The movable head structure can rotate even under load, enabling application at different angles.
- Compatibility and Modularity: Compatible with E-FORCE3, SMART-FORCE, or hose systems, and can be expanded with various accessories (adapters, support parts, etc.).

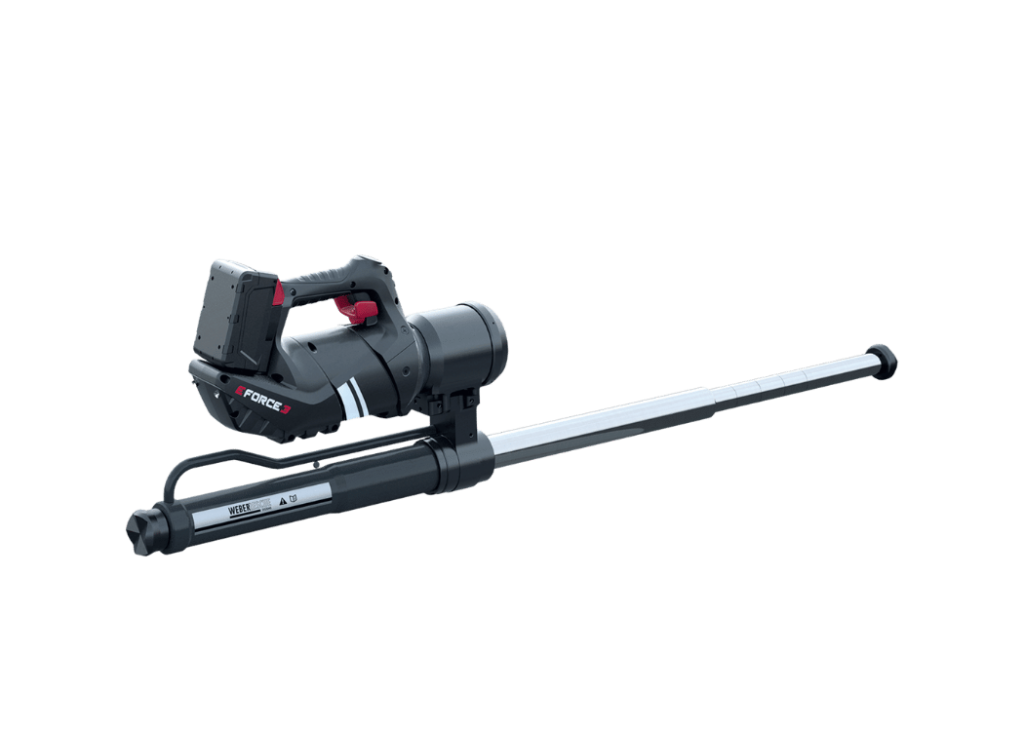

| Model | RZT 2-1360 E-FORCE3 |
|---|---|
| Thrust Force (1st stage) | 108 kN |
| Thrust Force (2nd stage) | 62 kN |
| Closed Length | 587 mm |
| Piston Stroke (1/2) | 428 mm / 372 mm |
| Extended Length | 1,387 mm |
| Weight | 20.5 kg |
| Protection Class | IP54 |
| Operating Pressure | 700 bar |
| Dimensions (L x W x H) | 587 x 134 x 365 mm |
